Description

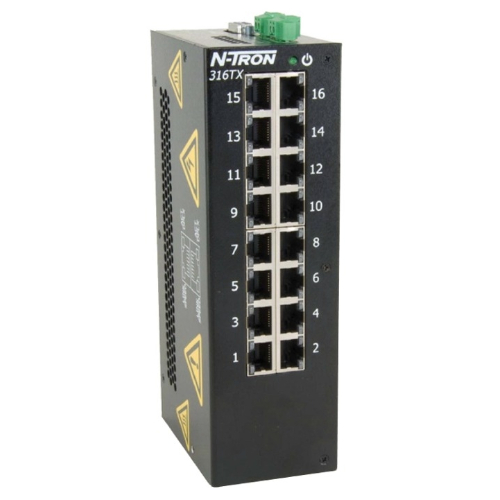

The N-Tron 316TX-N is an industrial network switch which is designed to meet and exceed the most demanding industrial communication requirements while providing high throughput and minimum downtime. The 316TX-N provides sixteen RJ-45 auto sensing 10/100BaseTX ports. All TX ports utilize state-of-the-art Ethernet switching technology and are full/half duplex capable. The 316TX-N auto-negotiates the speed and flow control capabilities of the TX port connections and configures itself automatically. Bi-color LEDs are provided to display the link status, speed and activity of each port as well as power on/off status.

The TX ports of the 316TX-N are auto sensing, so there will be no need to make extensive wiring changes due to future upgrades of host computers, plant systems, or Ethernet I/O modules. The switching fabric simply scales up or down automatically to match network environments. The 316TX-N also supports up to 4,000 MAC addresses, enabling this product to support extremely sophisticated and complex network architectures.

The 316TX-N is an ideal candidate for upgrading existing hubs and repeaters to increase bandwidth and determinism by virtually eliminating network collisions. The product provides a cost-effective solution while maintaining the plug & play simplicity of an unmanaged hub.

Features:

• Compact Size, Small Footprint
• Full IEEE 802.3 and 1613 Compliance
• NEMA TS1/TS2 Compliance
• American Bureau of Shipping (ABS) Type Approval
• Extended Environmental Specifications
• Sixteen 10/100 BaseTX RJ-45 Ports
• Supports Full/Half Duplex Operation
• LED Link/Activity Status Indication
• Store-and-Forward Technology
• Auto Senses Speed and Flow Control
• MDIX Auto Cable Sensing (RJ-45)
• Up to 2.6 Gb/s Maximum Throughput
• Rugged Industrial DIN-RAIL Enclosure
• Redundant Power Inputs (10-30 VDC)
• Bi-Color Status LEDs for Link, Speed, Activity & Duplex
• Port Control
• N-View™ OPC Switch Monitoring Option
