Description

The Trumeter APM (Advanced Panel Meter) is the most visible, easy to use, multi-format, programmable panel meter on the market for Rate, Speed & Flow applications. The APM includes a fully programmable input, user selectable measurement ranges (min, max and span), 2 independent alarm outputs and a fully scaled analog monitor output. And all programming is accomplished through a free, easy to use PC application. The APM Rate Meter has been engineered for applications that require accurate rate measurement. The wide input range of 0Hz – 60KHz, an accuracy of 0.01% and process time measurement make it the ideal meter for a range of rate measuring applications including: Flow applications, Motor speed monitoring & Production lines. Other features include set-points and dynamic backlighting, which have made the APM range the most popular panel meter on the market today.

Custom Visual Display

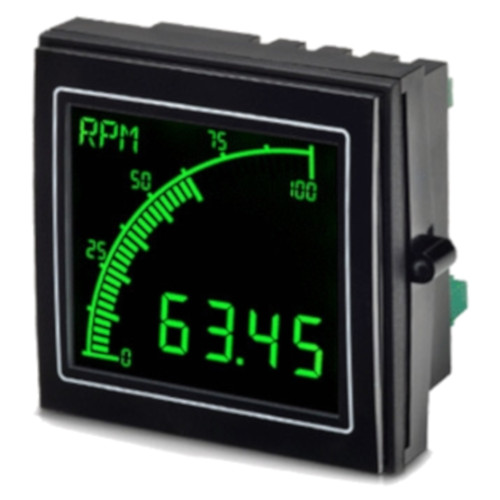

The APM incorporates a user selectable Red, Green or White LED backlight which features a large 4-digit display with a separate 40 segment bargraph display. The APM also features a custom message area with fully programmable display scales. In addition, the backlight can be configured to automatically change color or flash when the input reaches a certain value or goes outside a specific range.

Features:

• 40 segment bar graph display
• Large 4 digit display
• Custom annunciators
• Separate Starburst display area for annunciators, custom messages and alarm information
• 0.01% Accuracy
• User adjustable backlight brightness and color
• Wide viewing angle (both horizontal and vertical)
• Programmable Scale (offset and gain) and Range (min and max)
• Two independent alarm set-points
• Two independent outputs
• 4-20mA analog monitor output

Need a programming cable to set-up your APM meter?
Add a Trumeter APM 022128-01 USB Programming Cable to your order!
