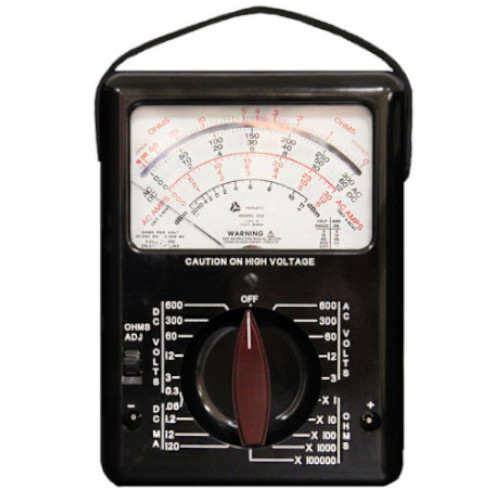

The Triplett Model 630 is the industry standard for laboratory, bench and field testing. The 630 features 25 ranges and functions and comes with a single range switch to help reduce operator error. The 630 will measure up to 600 AC/DC volts and up to 0.12 DC amps. This unit includes 48" leads, alligator clips, batteries, fuses and instructions.

• 25 Ranges and Functions
• AC/DC Voltage up to 600V
• DC Current from 0.6mA to 0.12A
• Resistance up to 100MOhm
• Decibel function for audio applications
• Mirrored Scale to reduce parallax error
• Diode overload protection and 2 fuse arrangement.
• Single range switch and only one set of input jacks to minimize error.
• Completely insulated unit with safety leads.
• Glass meter window for added chemical resistance

Additional Info

• ACV
• Analog
