Description

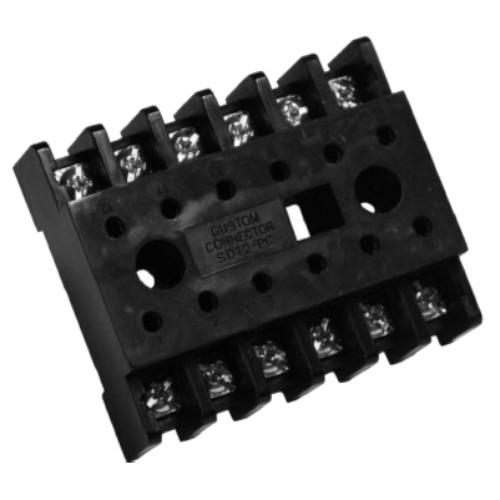

The Time Mark Model 51015601 12-Pin Socket is a surface or DIN-rail mount socket. This unit is used for Time Mark Corporation models 261XBXP and
261XBXPR Alternating Relays. UL rates the compound material used on the 51015601 at 140°C or 284°F. Terminals are #6-32 screws, and are suitable for use with wire sizes up to two #12 AWG and rated up to 600VAC. The Model 51015601 is UL Recognized, CSA Certified, and CE (European Conformity) Accepted

Features:

• 12-Pin Socket
• 10 Amps at 600VAC Rating
• Surface mount or DIN-Rail mount
