Description

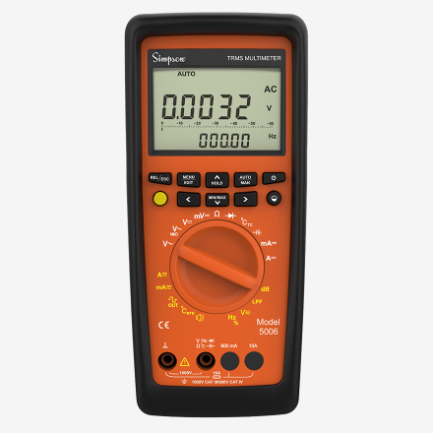

Simpson Electric’s NEW Series 5002/5006 Digital Portable Multimeters are designed for professionals and offer safe, reliable use. The rugged device features a high-resolution display, large range count, and is equipped with more than 30 different measurement functions.

Features and Benefits

• Data logger & view function (up to 32,000 readings)
• Plug & play USB connectivity with PC for report generation
• 100kHz bandwidth for high frequency signal measurement
• 1kHz low pass filter mode for accurate measurement at VFD
• Go-No-Go function to check pass/fail of devices
• VAC with 1MOhm impedance mode to eliminate ghost voltages
• 4-20A/0-20mA scale type measurement
• Single fuse for mA & A
• Adjustable square wave output
• Temperature measurement with J, K, Pt100 & Pt1000 sensors
• External power adapter to operate meter on Mains to preserve battery life
• Selectable clamp ratio for high current measurement
• Conductance and frequency/time period measurement
•

  View real time data and multimeter screen on your cell phone
• Log data into cell phone for easy on-field measurements
• Set functionality on multimeter mobile device – two-way communication
