Description

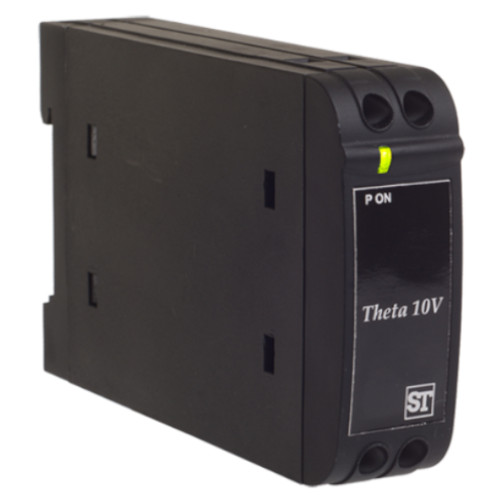

The Sifam Tinsley THETA 10V is an AC Voltage Transducer which converts a sinusoidal AC Voltage signal into a load independent DC Current or a load independent DC Voltage signal proportional to the measured value. The THETA 10V is available with various AC voltage inputs ranging from 100 ACV to 500 ACV and with a choice of 0-1 DCmA, 0-10 DCmA, 0-20 DCmA, 4-20 DCmA, 0-5 DCV or 0-10 DCV outputs.

Features:

• TRMS AC Voltage Transducer
• AC Voltage Inputs ranging from 100-500V
• Choice of 0-1 DCmA, 0-10 DCmA, 0-20 DCmA, 4-20 DCmA, 0-5 DCV or 0-10 DCV outputs
• Accuracy class 0.2 as per International Standard IEC/EN 60 688
• Output Response Time <250 ms
• Fast and easy installation on DIN RAIL or onto a wall or in panel using optional screw hole bracket
