Description

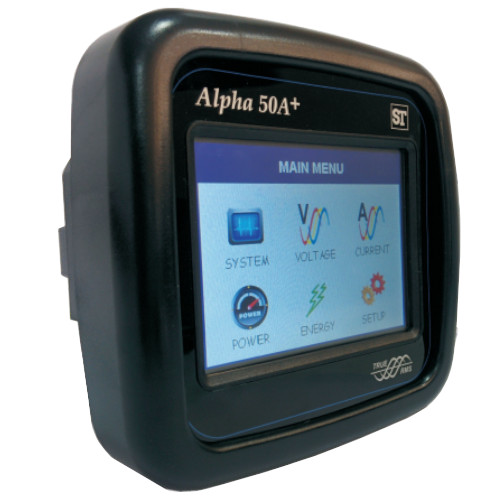

The Sifam Tinsley Alpha 50A+ is a compact multifunction power and energy meter which measures important electrical parameters in 3 phase 3 Wire and 3 phase 4 Wire networks and features a 320 x 240 resolution, touchscreen, color LCD display. The Alpha 50A+ measures electrical parameters such as AC Current, AC Voltage, Frequency, Active Power, Reactive Power, Apparent Power, Import Energy, Export Energy, Current Demand, KW, KW Demand, KVA Demand and more.

The Alpha 50A+ is ideal for energy billing, electrical load monitoring, sub-metering, genset, test benches and laboratories.

Features:

• Measures 1PH2W, 3PH3W & 3PH4W networks
• Measures electrical parameters such as AC Current, AC Voltage, Frequency, Active Power, Reactive Power, Apparent Power, Import Energy, Export Energy and more
• True-RMS Measurements
• 320 x 240 Resolution, Touchscreen, Color LCD Display
• On site Programmable CT/PT Ratios
• User selectable CT Secondary 1A/5A
• User selectable PT Secondary from 100 VLL to 500 VLL
• Wide auxiliary Power Supply which can accept any input between 60V – 300V AC/DC or 20-40 VAC or 20-60 VDC
• Error Diagnosis Mode
• MODBUS (RS485) Communication (optional)
• Pulse/Limit Switch output (optional)
• Analog output (optional)
