Description

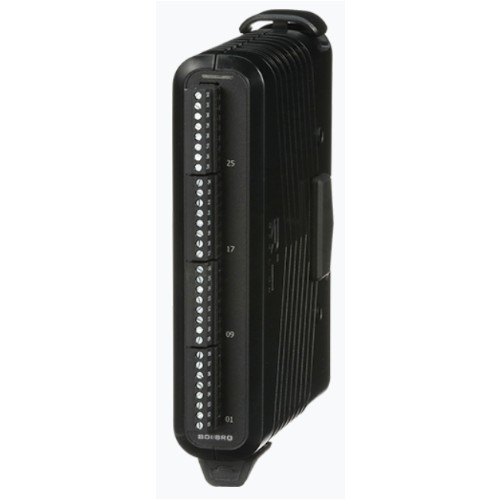

The Red Lion Controls FlexEdge™ DA-M00 8 Digital Input 8 Relay Output I/O Module is designed for use with the FlexEdge™ DA70 controller and features 8 Digital Inputs and 8 Relay Outputs that can be used to monitor contact or sensor inputs and actuate relays, solenoids, PLC inputs, etc.

The Digital Inputs accept DC inputs or contact closures and are software configured for Sink or Source signals. Each input also offers its own selectable input filter, as well as high or low-active input setting.

Features:

• 8 DC Voltage Inputs, 8 Form A Relay Outputs
• Inputs isolated from Outputs
• On-device Wiring Diagram
• At-a-Glance Module Status Indicator
• Hot Swappable with Zero Configuration
• UL Class 1, Div 2

*NOTE: This I/O Module is only for use on the FlexEdge™ DA70 Controller.
