Description

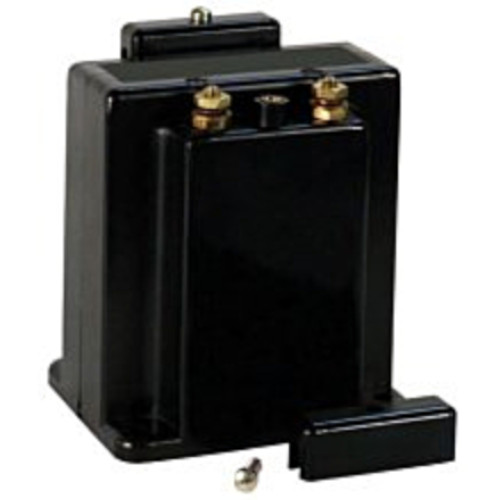

The Ram Meter Inc. 468 series of voltage transformers has a 600V, 10 kV BIL insulation class and will handle between 120V thru 600V ranges with a standard secondary voltage of 120V. These voltage transformers have an accuracy class of ±0.6% at all burdens up to 7.5 VA and &plumn;1.5% at 20 VA burden. The 468 series has a thermal rating of 75VA at 30°C / 50VA at 55°C. These transformers are designed for line-to-line operation, but may also be used for line-to-ground or line-to-neutral at reduced voltages.

Features:

• Accuracy Class: ±0.6% at all burdens up to 7.5 VA and &plumn;1.5% at 20 VA burden
• 600V, 10kV BIL insulation class
• Standard 120V Secondary Voltage Output
• 468 series available from 120:120V thru to 600:120V ratios
• Thermal Rating: 75VA at 30°C / 50VA at 55°C
• Terminals are brass studs No. 10-32 with 1 lockwasher, flatwasher & regular nut

Looking for a METER to compliment your PT?
Check out our selection of PANEL METERS & INSTRUMENTATION

Additional Info

• 600V
