Description

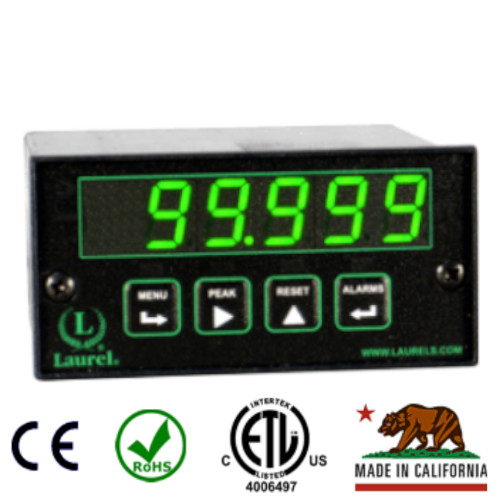

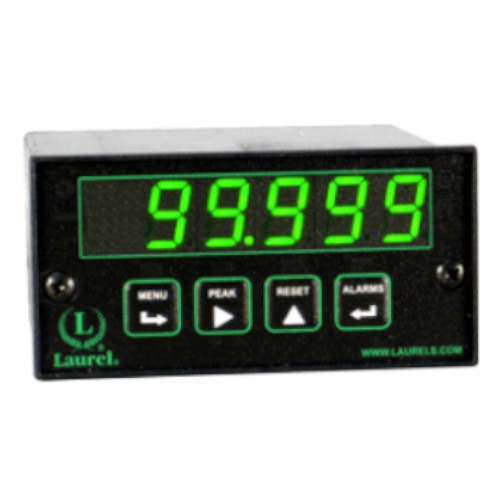

The Laurel Electronics Laureate™ digital panel meters feature a 5-digit, 7-segment, 14.2 mm (.56″) high Red or Green LED display and can be powered by 85-260 VAC with a 12-32 VAC or 10-48 VDC optional power supply. The Laureate™ Process meters accept signals such as 4-20 DCmA, 0-10 DCV, or 0-5 DCV which require zero and span adjustment for monitoring and control applications. These digital panel meters can also be ordered with analog output, relay outputs and communications for increased flexibility.

Features:

• Reads process signals from ±200 mV to ±600V or ±2 mA to ±5A full scale
• Ratiometric mode for bridges and potentiometers
• Scalable to ±99,999 for display in engineering unit
• Error less than 0.01% of full scale for most ranges
• Up to 60 readings per second
• Peak or valley capture & display
• Universal AC power: 85-264 ACV
• Built-in isolated excitation supply: 5, 10 or 24 DCV
• Ratiometric compensation for variations in excitation voltage
• 1/8 DIN case sealed to NEMA-4X from front panel
• Optional serial I/O: Ethernet, USB, RS232, RS485, Ethernet-to-RS485 converter
• Optional relay output: dual or quad relays, contact or solid state
• Optional isolated analog output: 4-20 DCmA, 0-20 DCmA, 0-10 DCV, -10 to +10 DCV
• Optional low voltage power: 10-48 DCV or 12-32 ACV
