Description

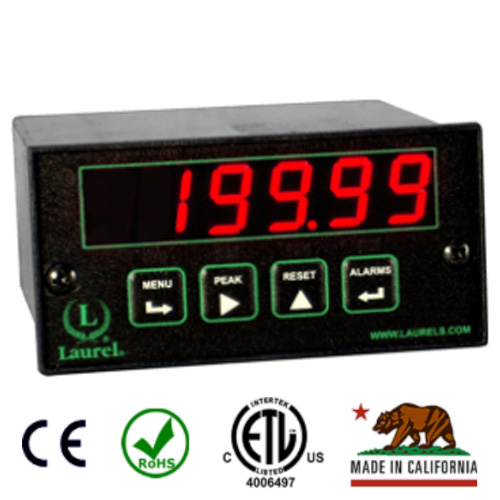

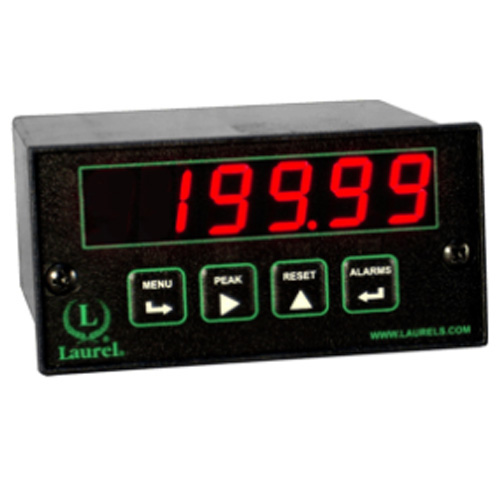

The Laurel Electronics Laureate™ True-RMS AC digital panel meters feature a 5-digit, 7-segment, 14.2 mm (.56″) high Red or Green LED display and can be powered by 85-260 VAC with a 12-32 VAC or 10-48 VDC optional power supply. The Laureate™ True-RMS AC meters will accept various types of inputs including AC Current and AC Voltage. These digital panel meters can also be ordered with analog output, relay outputs and communications for increased flexibility.

Features:

• True AC or AC plus DC RMS measurement with crest factor of 3.0 at FS
• Fast response: reading 0-16.7 ms after completion of each input signal cycle
• Measurement range from 0.1% to 100% of full scale
• Accurate to 99.9% of full scale, 10 Hz to 10 kHz
• 0.2, 2, 20, 200 & 600V voltage ranges
• 2, 20, 200 mA & 5A current ranges
• All ranges factory calibrated
• Scaleable to 5 digits for external current shunts or 5A current transformers
• Selectable peak or valley display
• 5-264 Vac universal AC power supply
• 1/8 DIN case sealed to NEMA-4X from front panel
• Optional serial I/O: Ethernet, USB, RS232, RS485, Ethernet-to-RS485 converter
• Optional relay output: dual or quad relays, contact or solid state
• Optional isolated analog output: 4-20 mA, 0-20 mA, 0-10V, -10 to +10V
• Optional low voltage power: 10-48 Vdc or 12-32 Vac
