Description

PLEASE NOTE: We are only authorized to sell ITRON meters within the state of Michigan!

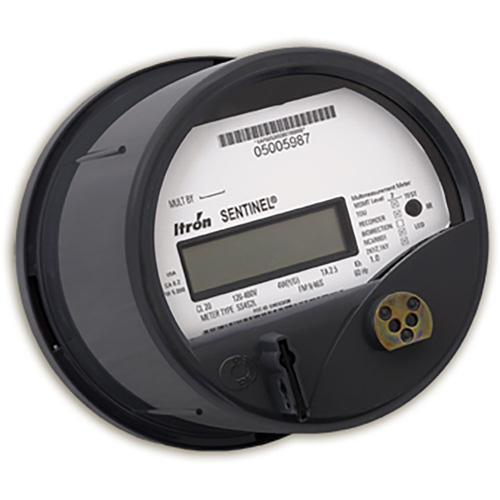

The ITRON Sentinel series meters are solid-state, electronic, multimeasurement, polyphase meters of exceptional accuracy. These self-contained or transformer-rated meters are designed for use in commercial and industrial locations, including large industrial sites and substations. An advanced analog-to-digital sampling technique samples each incoming current and voltage waveform 32 times per cycle (60 Hz). Voltage and current values are calculated every 2 cycles using true Root Mean Square (RMS) calculation. Volt-amperes are calculated by multiplying the RMS voltage value with the RMS current value, thus providing an arithmetic calculation for VA. The Sentinel meter also allows for a vectorial calculation of VA.

Features:

• Class 0.2 Accuracy
• 5 Measurement Levels
• Upgradable Firmware
• Error & Event Logging
• SiteScan Onsite Monitoring System
• SiteScan Diagnostic Snapshots™
• Flexible Configuration for Various Metering Applications
• Autoranging Power Supply

Flexible Platform:

• Electronic circuit boards fit together to perform various functions
• Transformer input for current and resistive divider input for voltage
• Analog-to-digital conversion and measurement processing
• Register, load-profile, real-time clock, and communications processing
• Input and output board for pulse accumulation or event notification

Protocols:

• The Sentinel meter uses PSEM (ANSI C12.18-1996) protocol
• QDIP Protocol
