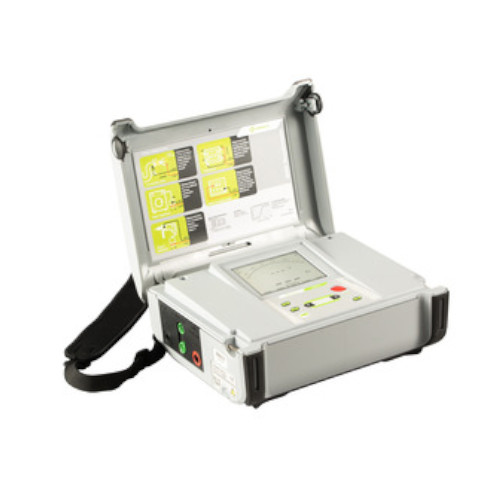

The Greenlee 5990A is a 5000V megohmmeter/insulation tester that is intended to test insulation, detect voltage and verify continuity. The 5990A automatically discharges the tested object when the test is complete. The 5990A features pre-set test voltages of 250V, 500V, 1kV, 2.5kV and 5kV for quick adjustments while the large LCD display with backlight offers easy to read
results (Digital & Analog). The 5990A is rated for CAT IV-600V and features an automatic discharge after every insulation test for extra safety.

Features:

• Automatic Discharge on completion of insulation test
• Continuity Range: 20mA, 200mA
• LCD, backlit / Analog Bar Graph and Digital display
• Measurement Category: 5kV
• Test Voltages: 250V, 500V, 1kV, 2.5kV, 5kV
• Replacement Range – 0.12MΩ–999GΩ
• Voltage Rating: CAT IV-600V
• Auto Calibration on Start-up
• Onboard Battery Charger
• Mains Power: 90-260Vac, 45-65 Hz
• Hazardous Voltage Warning Icon > 70 volts
• Test: Insulation, Voltage & Frequency
