Description

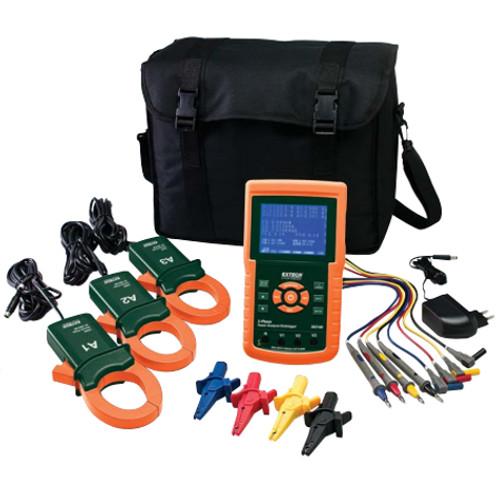

The Extech 382100 is a 3-Phase Power Analyzer and Datalogger with a simultaneous display to measure Single-Phase, 3-Phase/3-Wire and 3-Phase/4-Wire systems up to 1200 amps and 600 volts. The 382100 displays Active Power (kW), Apparent Power (kVA), Reactive Power (kVAR) and Power Factor and features an adjustable CT ratio (1-600) and PT ratio (1-1000). The unit automatically logs up to 17,000 sets of measurements with a 2GB SD memory card which can be imported to a PC for further analysis.

Features:

• Single phase, 3-Phase/3-Wire or 3-Phase/4-Wire systems
• Large backlighting LCD displays 35 parameters simultaneously (MW, kVAR, MVA, PF plus the voltage and current of the 3 phases)
• Displays Active Power (kW), Apparent Power (kVA), Reactive Power (kVAR) and Power Factor
• Current measurements to 1200A and Voltage measurements to 600V
• MWH, MVAh, MVARh energy measurements
• Adjustable CT ratio (1 to 600) and PT ratio (1 to 1000)
• Automatically logs up to 17,000 sets of measurements with 2GB SD memory card
• User-programmable sampling time from 2 to 7200 seconds
• PC interface with optional Windows® 95/98/NT/2000/ME/XP compatible software, RS-232 cable and USB adaptor
