Description

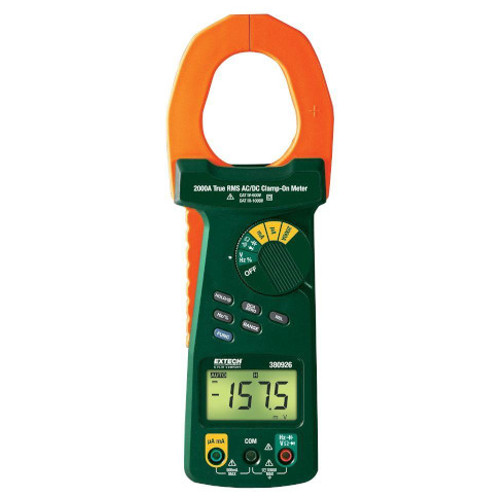

The Extech 380926 is a 2000A AC/DC, full range clamp-on multimeter with a high resolution up to 0.1µA/0.1mV.This model can take current measurements up to 2000A through the clamp and 400mA via test leads and it’s rugged 2" (50mm) jaws can accommodate one 2000MCM or two 500MCM cables.

Features:

• Full function autoranging DMM include AC/DC Voltage and Current, Resistance, Capacitance,Frequency, Duty Cycle, Diode and Continuity
• AC/DC Current (Clamp): 400A, 2000A
• AC/DC Current (DMM): 400 uA, 4000 uA, 40 mA, 400 mA
• AC Voltage: 4V, 40V, 400V, 1000V
• DC Voltage: 400 mV, 4V, 40V, 400V, 1000V
• Capacitance: 50 nF, 500 nF, 5 uF, 50 uF
• Resistance: 400 Ohms, 4 kOhms, 40 kOhms, 400 kOhms, 4 MOhms, 40 MOhms
• Frequency: 5 Hz, 50 Hz, 500 Hz, 5 kHz, 50 kHz, 100 kHz
• Large 4000 count backlit display for high resolution and easy viewing in dimly lit areas
• Basic DCV accuracy of 1% with 0.1mV resolution and current resolution to 0.1µA
• Rugged 2" (50mm) jaws accomodate one 2000MCM or two 500MCM cables
• DCA push button zero, Relative measurements and Data Hold
• Heavy duty ABS case with built-in stand and thumb control function switch
• Comes complete with test leads and 9V battery
