Description

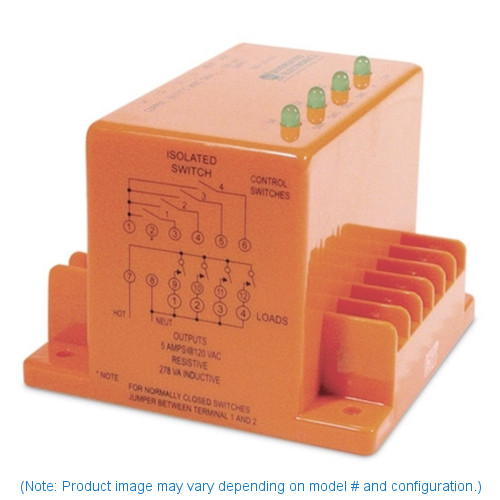

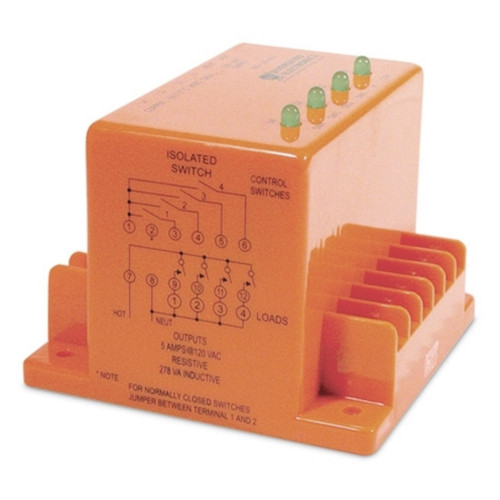

The ATC Diversified ISO series multiple channel devices are used to provide a safe and reliable means of controlling loads from hazardous locations without releasing sufficient energy under normal or abnormal conditions to cause ignition of a flammable or combustible atmospheric mixture while in its most easily ignited concentration. An isolated output turns on when the corresponding control switch input from the hazardous location is activated. When using normally closed control switch inputs, a jumper should be installed between terminals 1 and 2. Normally open control switch inputs do not require the optional jumper. When the non-latching ISO Series control switch input is activated, its corresponding output turns on. When the control switch input is deactivated, its output turns off. Control switch input 1 also controls output 1 just as in the non-latching ISO Series.

Features:

• Multi-channel isolated switch
• Used to safely control loads from hazardous locations
• UL913 listed intrinsically safe plug-in device
• Non-Latching

Applications:

• Pump sequencing
• Level control
• Lift stations
• Motor protection
• Other industrial applications in hazardous environments
