Description

The ATC Diversified GFD-100 is intended for the use on ungrounded systems to detect and indicate the phase of the first ground fault condition. This enables corrective action to avoid the potential hazards resulting from a second ground fault.

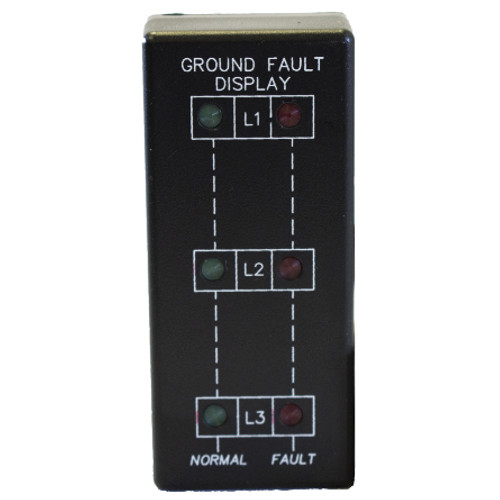

With nominal 3 phase line voltage applied, a flashing NORMAL green LED gives indication of a non-fault condition and integrity of the wire connection to the corresponding phase. A flashing red LED gives positive FAULT indication of either a phase-to-ground fault, or a lost connection to the corresponding phase.

Features:

• For use on Un-Grounded Systems
• Detects & Indicates Phase of First Ground Fault
• Vertical Mount
• Easy Installation in Conduit Knockout
