Description

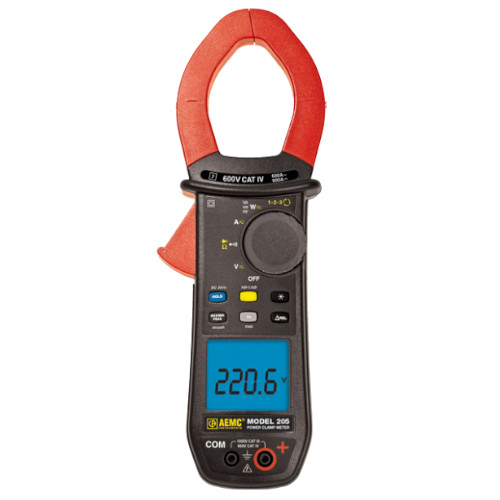

The AEMC Instruments Model 205 True-RMS clamp-on meter is safety rated at 600V CAT IV. It measures AC+DC volts and amps, frequency, continuity, resistance, power and Power Factor, phase rotation, and THD. It can also perform diode checks. The Delta relative function compares new measurements to a reference value, and the MIN/MAX function tracks high and low values. The Model 205 also tracks peak+ and peak– values. This compact and rugged meter can operate in the most demanding work environments, and its IP40 rating allows it to withstand both dust and water spray.

Features:

• Measures up to 1000VAC (1400V peak), 1000VDC and AC and DC with resolution to 10mV
• Measures up to 600AAC and 900ADC
• Measures temperature in °F or °C using a K-type Thermocouple
• Measures frequency to 20kHz with 0.1Hz resolution
• Measures W, VA, VAR & PF for single & 3-phase balanced systems
• Auto selects AC or DC measurement voltage
• CAT-IV 600V Rated
• UL 94 flame retardant self-extinguishing
• IP54 Rated
• 10,000-count blue electroluminescent backlit display
• True InRush® current measurement with 1mS capture
• Delta relative function for tracking deviation from reference values
• Adapter function to accept inputs from sensors and transducers with a millivolt output with user programmable scaling
• Jaw opening up to 1.33"
• Leads are constructed with a flexible silicone material
