Description

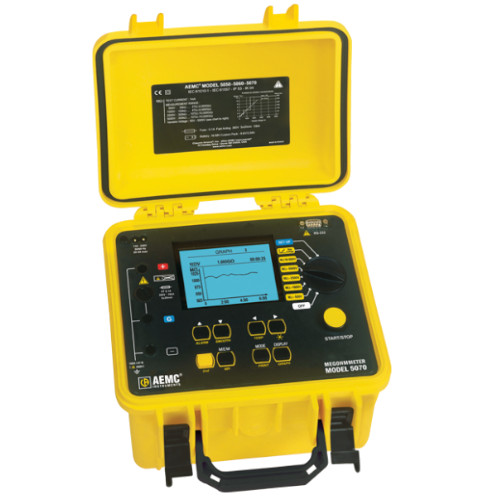

The AEMC Megohmmeter Model 5070 is a fully automated 5000V digital/analog graphical insulation tester with selectable test voltages from 40 to 5100V and fixed test voltages of 500V, 1000V, 2500V and 5000V. The Model 5070 is the only megohmmeter to offer both a graphical plot of the test right on the instrument as well as a digital representation of the test results. It has a large graphical display with a 5 line alphanumeric display and graph and offers the ability to program up to 3 step voltage profiles, each containing up to 5 steps.The Model 5070 has an RS-232 port which provides the ability to configure the unit and run the test from a PC and the test results can be generated directly to a printer using the DataView graphing and analysis software.

• Test voltage combination of 500V, 1000V, 2500V and 5000V
• Insulation measurements from 30kΩ to 10TΩ
• Adjustable and programmable test voltage (40 to 5100V)
• Automatic calculation of DAR, PI and DD values
• Direct measurement and display of Capacitance and Leakage Current
• Display resistance, test voltage and run time
• Programmable test run times and PI ratio times
• Smooth and Alarm functions
• Automatic test inhibition if live sample (>25)
• Automatic discharge and display of discharge voltage
• Large dual-display with time, voltage and measurements shown
• Rugged weatherproof field case
• RS-232 interface for direct printing of results
• 128kB memory for storing field test data
• Remote operation from PC
• Includes DataView software
