Description

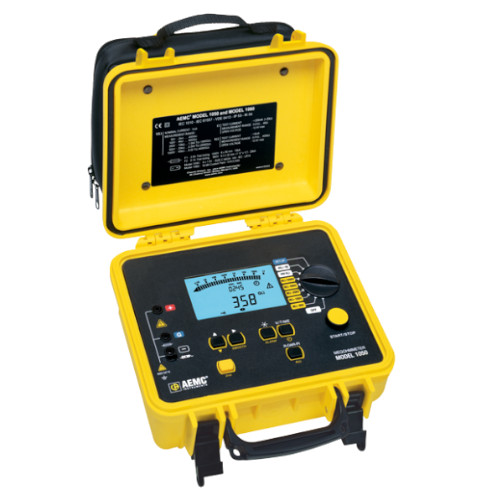

The Megohmmeter Model 1060 is a 1000V Digital/Analog Insulation Tester. It is designed to facilitate testing by incorporating automatic measurement features and user friendly functions. The Model 1060 provides test voltage combinations of 50V, 100V, 250V, 500V and 1000V. Measurements are displayed on a large dual-display LCD with bargraph for quick viewing of changes or trends.The Model 1060 automatically provides the DAR and PI ratios directly on the display. User defined PI time intervals may also be programmed. The user may even select DAR or PI functions before the test, and the megohmmeter will stop at the appropriate time and display the results.An automatic test inhibitor prevents testing on live circuits above 25V and discharge test voltage may be displayed.The Model 1060 has an RS-232 interface and an extensive memory function, which permits storage results in files specific to a sample. A standard software package (DataView®) included with the Model 1060 enables the user to display test results and graphs. The Model 1060 can also be fully programmed and controlled by a PC. Automatic report generation of test results is quick and easy via direct connection to a printer or through a PC.

• True Megohmmeter
• Test voltage combinations of 50V, 100V, 250V, 500V and 1000V
• Insulation measurement to 4000GΩ (4TΩ)
• Direct measurement of DAR and PI values
• Direct measurement of sample Capacitance
• Display of test voltage and run time
• Programmable test run times and PI times
• Smooth and Alarm functions
• Automatic test inhibition if live sample >25V
• Automatic discharge after use with voltage display
• Large dual display with time, voltage and measurement
• Bright blue electroluminescent backlight
• Battery powered
• Auto power-down when not in use
• Remote operation with optional test probe
• Rugged dual wall weatherproof field case with detachable lead/accessory pouch
• AC rechargeable NiMH battery pack
• RS-232 interface for direct printing of results (serial output)
• Remote operation through a PC
• Includes DataView software for data storage, real-time display, analysis and report generation

Additional Info

• 1,000V
